Two LSG fillers joined by a roller conveyor for spirits in jerrycans, run by one operator — distillery, United Kingdom
| Customer | Distillery |
| Country | United Kingdom |
| Year | 2022 |
| Industry | Food — spirits |
| Product | Alcoholic products |
| Containers | Jerrycans |
| Machines | 2 × LSG |
| Functions | Filling · semi-automatic capping · flushing system · free-roller conveyors with side guides · shared electrical cabinet |
| Version | Explosion proof |
| Output | 140 jerrycans/h |
The challenge
A distillery in the UK needed to fill flammable spirits into jerrycans, several products completely separately, and to get more output without adding operators.
The solution

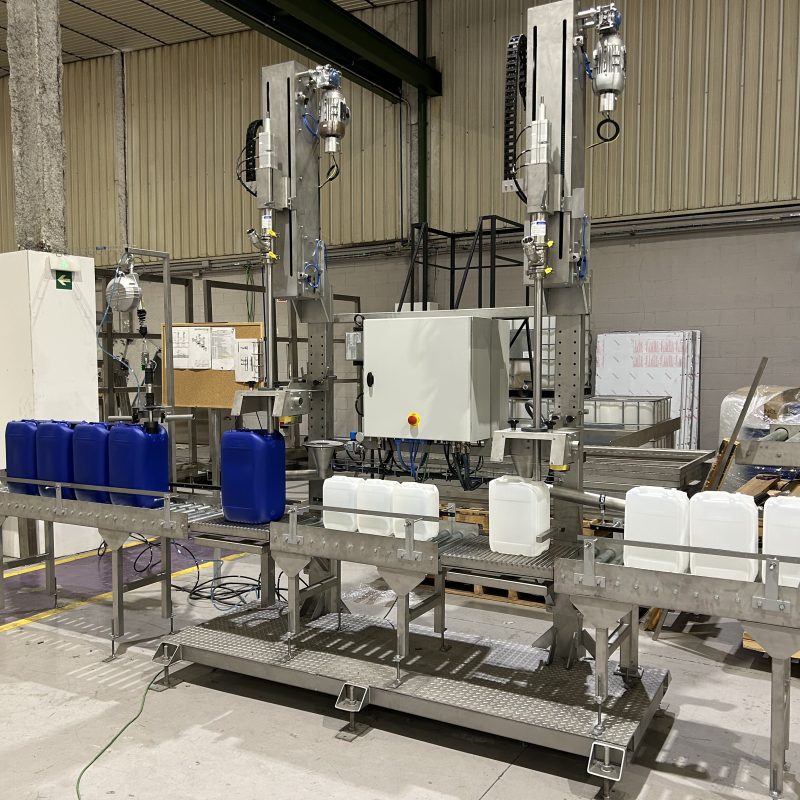

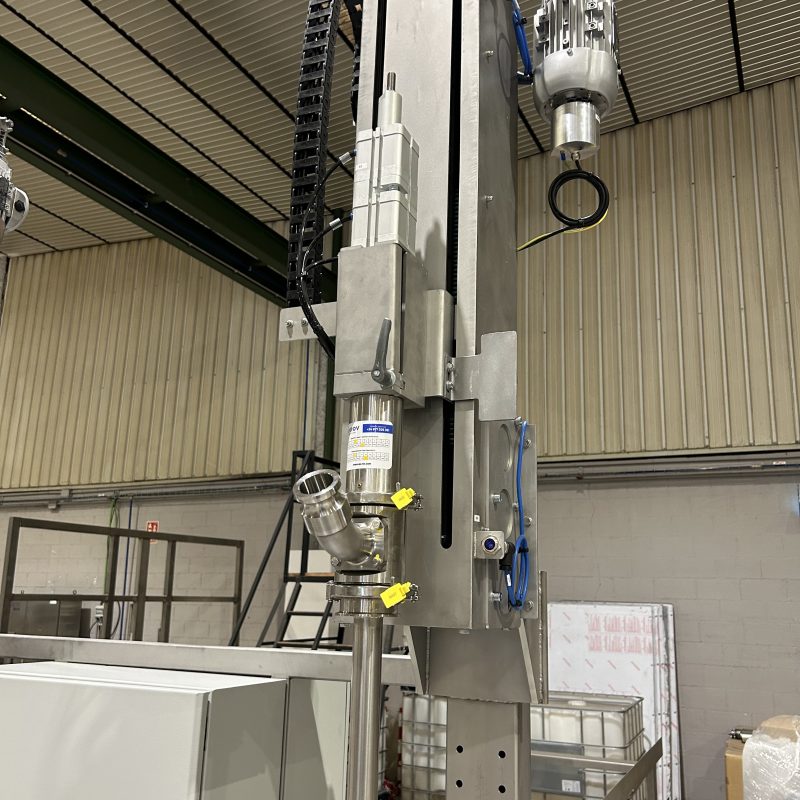

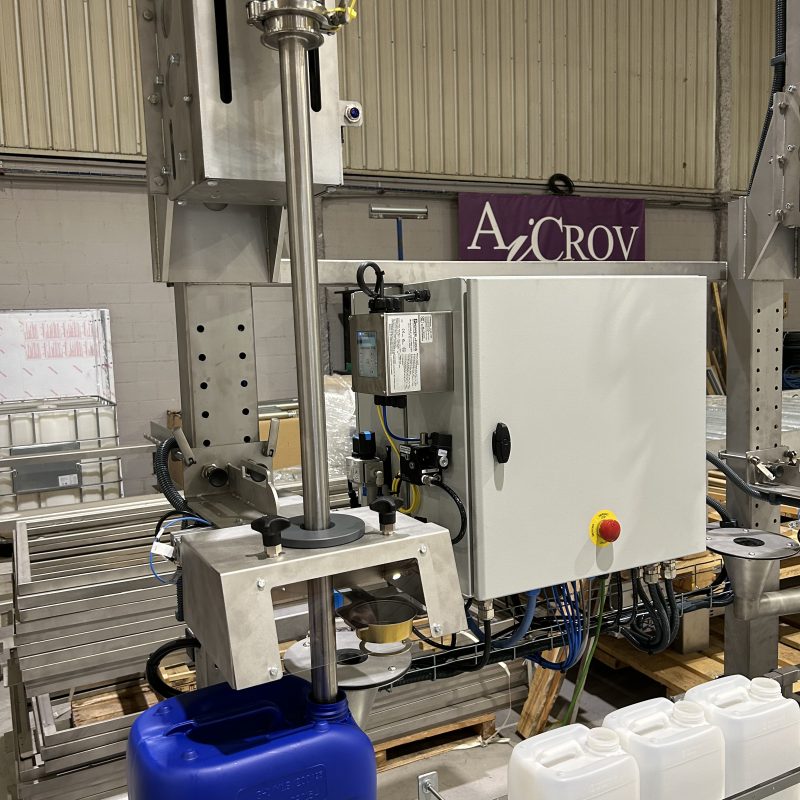

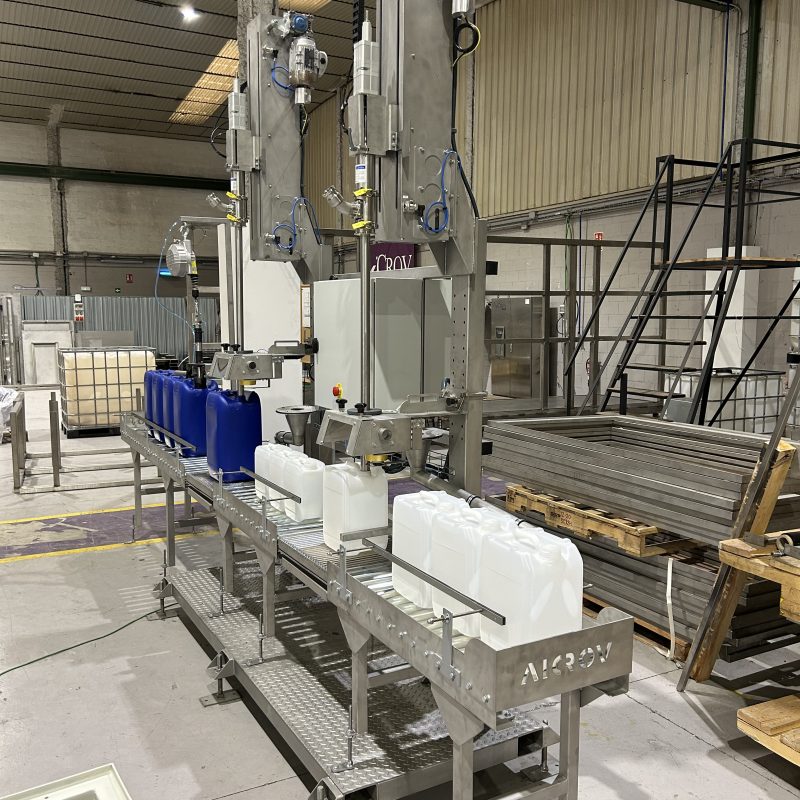

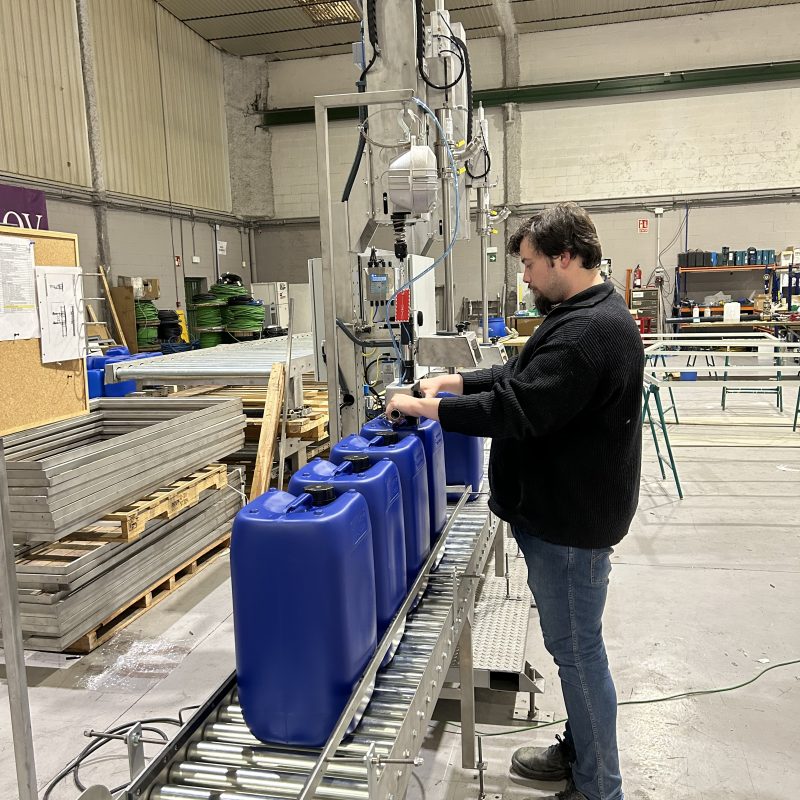

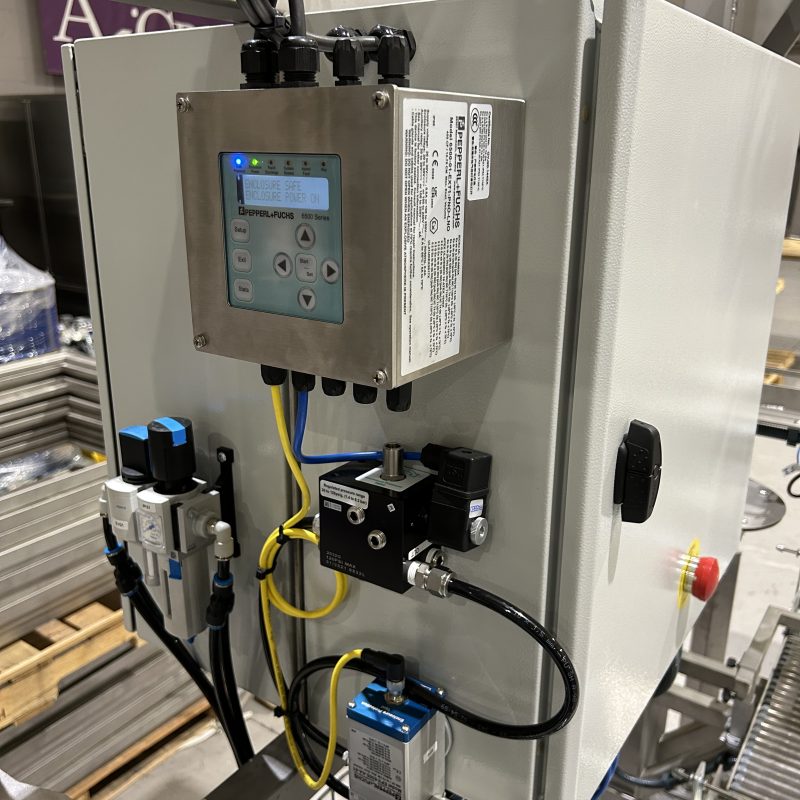

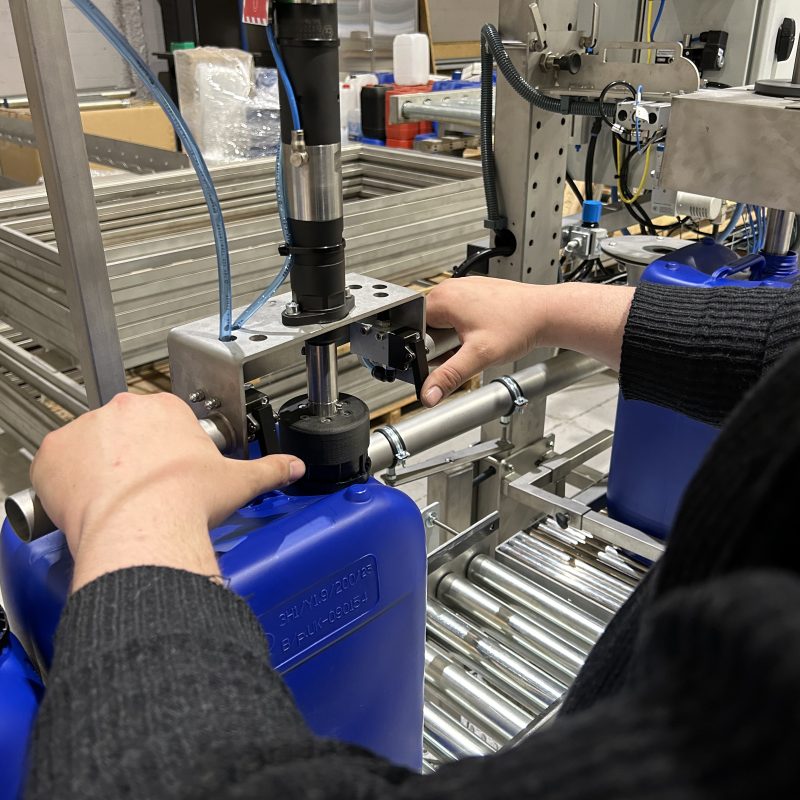

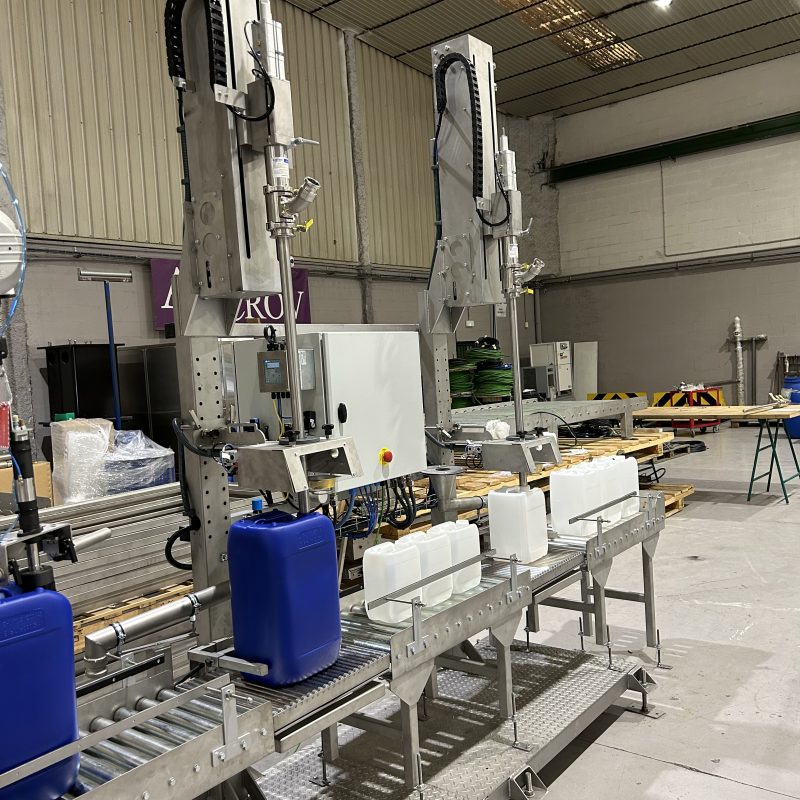

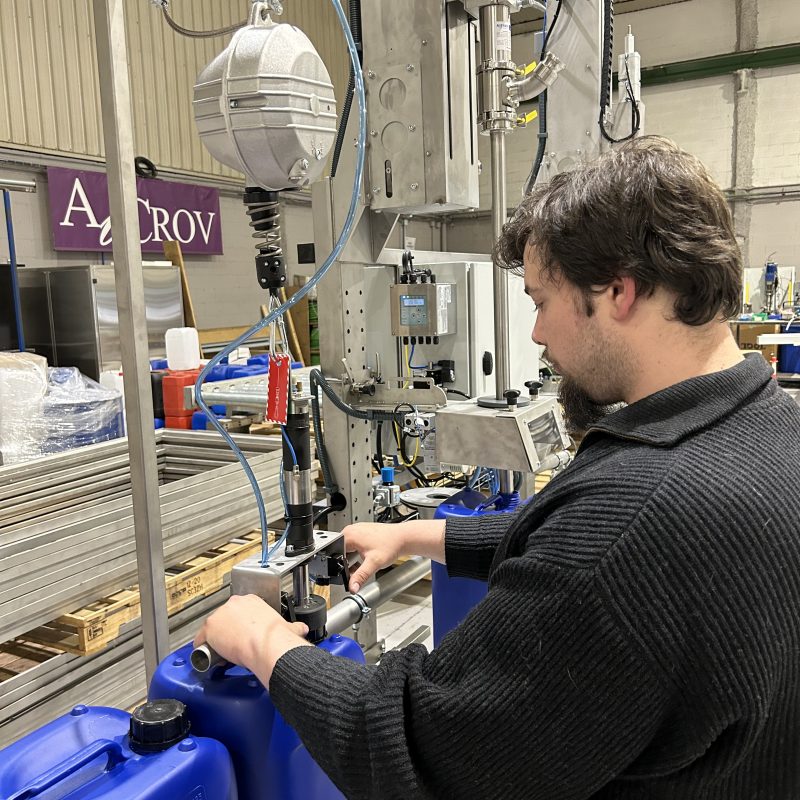

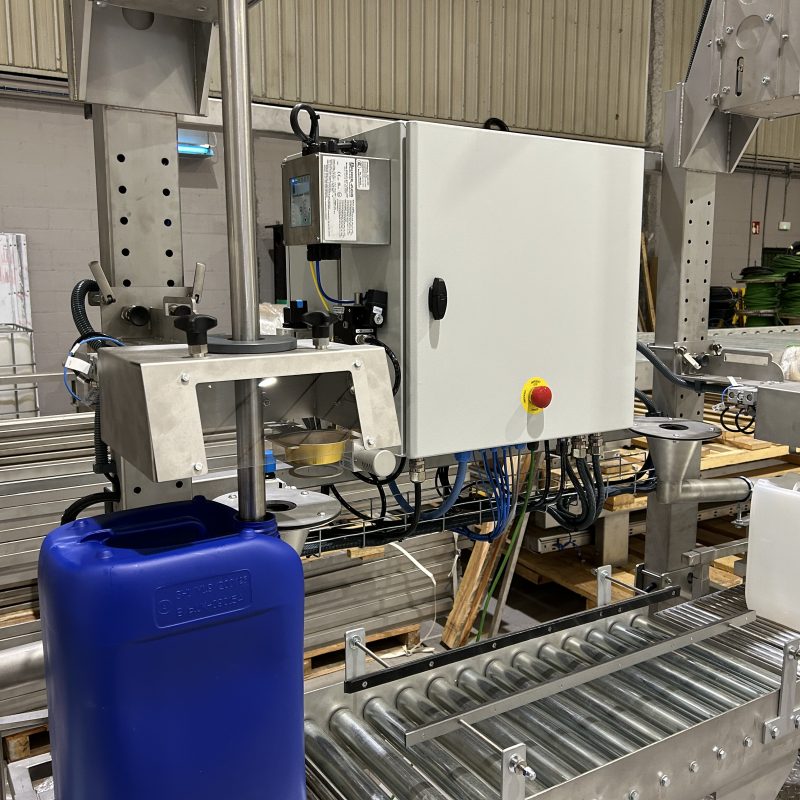

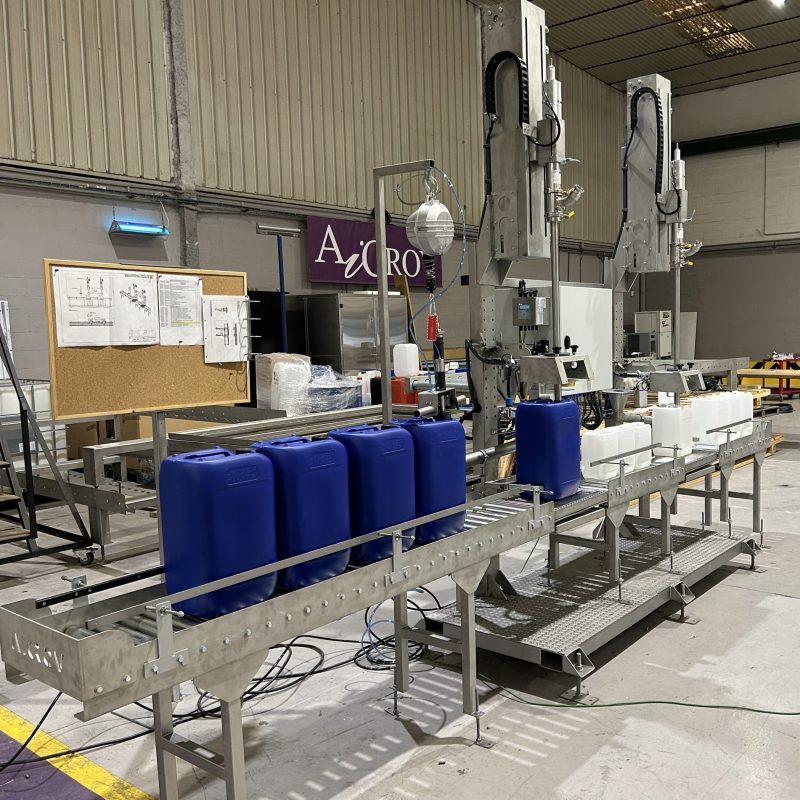

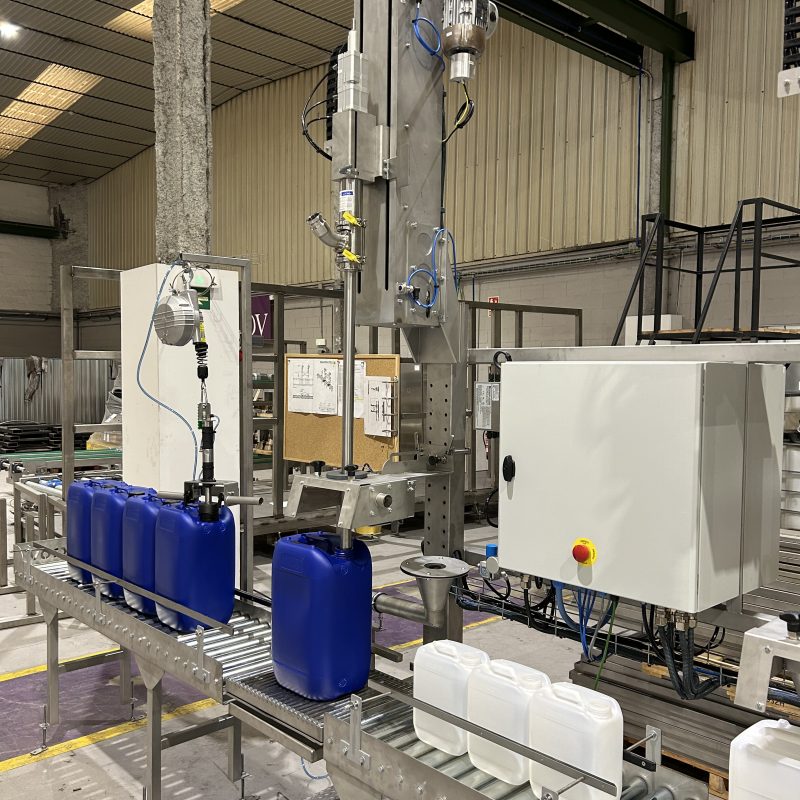

Two LSG fillers in an explosion proof version, joined by a free-roller conveyor with side guides and sharing one electrical cabinet. One operator works both machines at once, so output almost doubles. Each LSG fills its own products, which avoids cross-contamination. The line has a flushing system and a special semi-automatic capping tool for the jerrycans.
The result
140 jerrycans an hour with one operator and no mixing between products.
