Explosion proof EL2-E with nitrogen inerting for flammable solvents in cans from 1 to 30 L — Spain
| Customer | Solvents producer |
| Country | Spain |
| Industry | Chemicals |
| Product | Flammable solvents |
| Containers | Round and rectangular cans from 1 to 30 L, off-centre bung |
| Machine | EL2-E |
| Functions | Centring · nitrogen purge · coarse and fine filling with nitrogen feed · press-fit capping |
| Version | Explosion proof, nitrogen inerting |
| Accuracy | ±0.1% |
| Installed | 2019 |
The challenge
A solvents producer in Spain needed to fill flammable solvents into round and rectangular cans of many sizes, all with an off-centre bung, with no risk of ignition.
The solution
Explosion Proof Automatic Filling Machine EL2-E — Nitrogen Inerting, Solvents | AiCROV

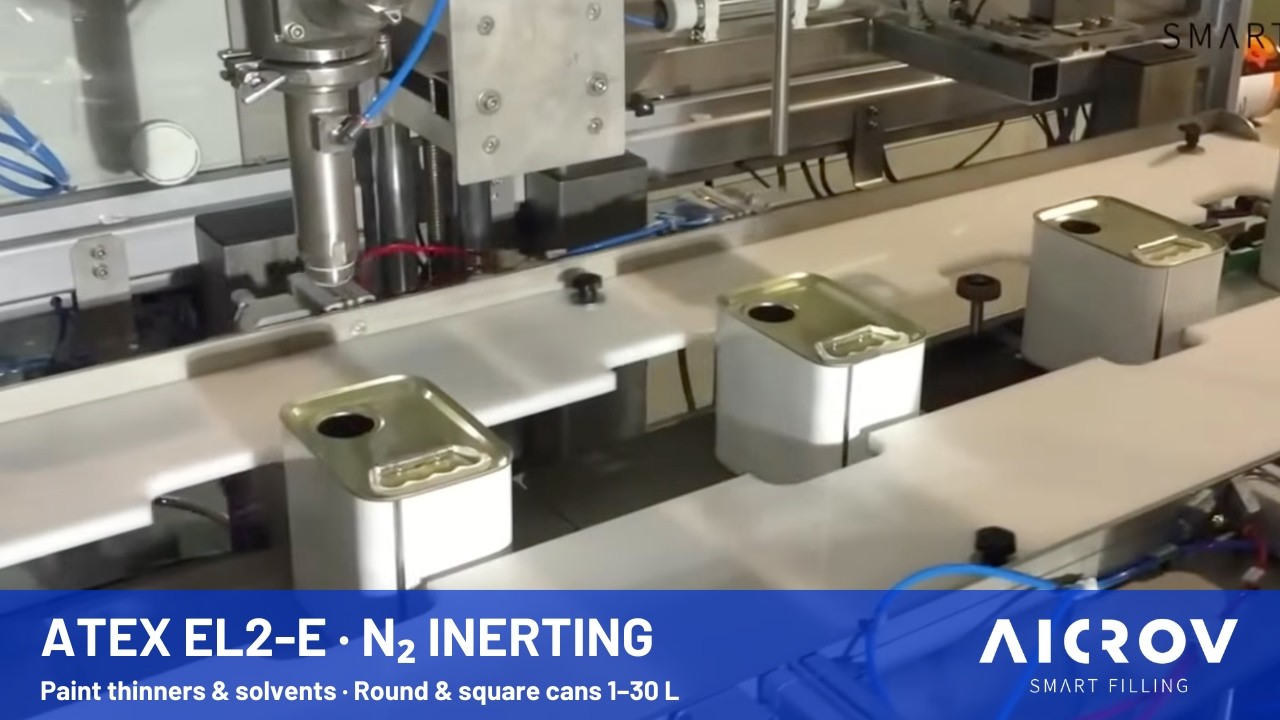

An EL2-E in an explosion proof version with four stations. The first centres each can so its off-centre bung sits under the nozzle. The second purges the oxygen with nitrogen: without oxygen there is no ignition. The third fills in two speeds, fast then slow, while feeding nitrogen into the can, with a final top-up just before the nozzle withdraws so the can reaches the capper still inerted. The fourth presses on a push-on cap.
The result
Flammable solvents filled to ±0.1% in an oxygen-free atmosphere, from 1 to 30 litres on one machine.
