IBC filling machine – LSC

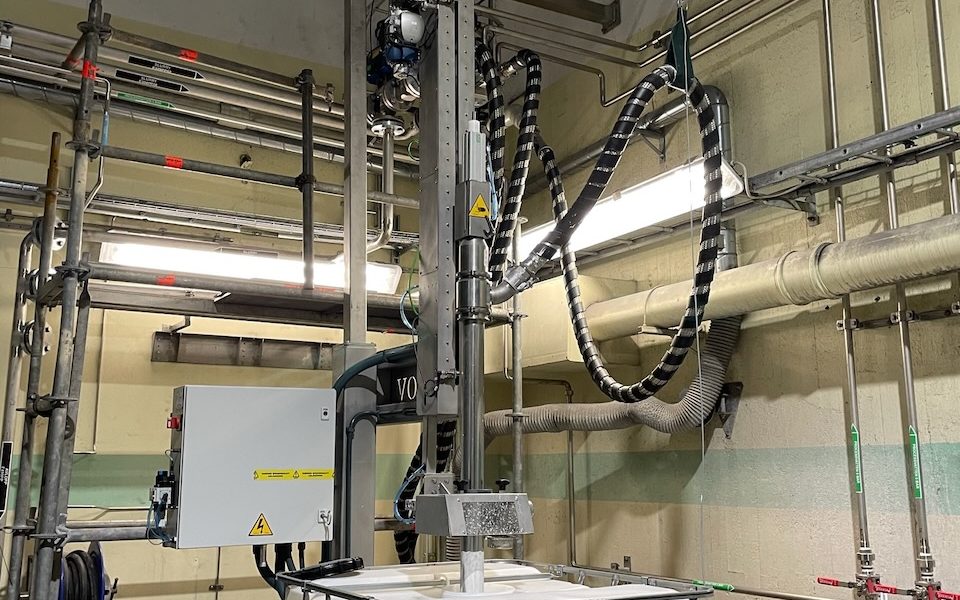

The IBC filling machine LSC is a semiautomatic weight filling equipment suitable for filling liquid and viscous products in large containers. This semiautomatic IBC filler is suitable to fill from 800 to 1.500 litres in IBC, totes, bulk containers and spacecraft. A preconfigured filling solution for the automatic filling of containers standing on pallets.
The IBC filling machine LSC is designed for those who only need to fill IBC and totes. It has a quick set up and configuration and it’s available in an anti-explosion version for dangerous areas.
Main features
- Quick configuration and start-up
- Easy to use
- High reliability and durability of the equipment
- Adjustable packaging height
- Integrated control system
- Does not require installation
- ATEX certification (optional)
- Food grade (optional)
Technical specifications
Find below the technical specifications of our IBC filling machine LSC
| Approximate nominal productions | 20 IBC/hour (1.200 liters) |
| Base height range of adjustment | 550 mm servo adjustment |
| Weight scale resolution | +/- 250 gr |
| Product pump control | 3 potential contacts for controlling an on-site pump or a pilot valve for gross/fine fill |
| Power | Electrical: 240V, 50-60Hz, <1Kw |
| Required air pressure | 5 bar |
| Work temperature | -10ºC a +45ºC |
| Product temperature | 0ºC a +130ºC |
| Product connection | 2 ½ inch male camlock |
| Approximate weight | 500Kg |
Mode of operation
- Set the final net weight value to be filled in the container through the HMI screen.
- Adjust, easily and without tools, the machine filling height depending on container’s format.
- Place the empty IBC on the scale.
- Press the “start” button. The filling is automatic, providing the final net weight configured in step 1.
- Take out the filled IBC.
- Repeat points 3 to 5 as many times as containers you need to fill.
Accessories available
- Gashood with anti-drip system
- Product hose support system
- Proportional filling lance movement
- Double filling weight scale
- Dosing lances support rack
- Additional weight scale for cans
- Filling history management
- CIP cleaning system
- Product pump control
- Frontal protection
- Dosing lance number control
- Electrostatic discharge control
- Flushing system
- Online connection with factory
- Filling recipes storage
- Overfill detection
Filling modes
Two filling assemblies are available. The structure is in sandblasted AISI 304 stainless steel; the nozzle is AISI 316L as standard, with many other materials available for demanding products.
Under bunghole
For products that do not foam and are neither flammable nor explosive, including dense and viscous products. The nozzle descends until it is just inside the container and fills from that position.
Immersion filling
For products that foam, and for flammable or explosive products. The nozzle descends to the bottom of the container and rises slowly, following the product level in real time as the container fills. With the immersion assembly, the filling recipe lets you choose one of three ways of filling:
- From the bottom: the nozzle stays at its lowest programmed position inside the container and performs the whole fill from there. For highly foaming products.
- From the top: the nozzle enters just inside the container and fills from there. For products that do not foam and are neither flammable nor explosive.
- Rising with the product: the nozzle opens at the bottom of the container and rises as it fills. The control system calculates the product height inside the container and keeps the nozzle at that level, stopping at the top of the container, without leaving it, until the fill is complete.
We have the best solution for your liquid filling machine.
Our semiautomatic liquid filling machines
With over 15 years of experience, we have deep knowledge in semiautomatic weight filling machines. Our semiautomatic liquid filling machines have a consolidated position in the market that will undoubtedly meet your production demands.
Our fillers are designed to fill liquid or viscous products in canisters, pails, drums and IBC. If you are looking for a filling solution from 1 to 1.500 litres containers take a look to our equipment.
Frequently Asked Questions
Why choose the AiCROV LSC IBC filling machine?
The LSC IBC filling machine is a solution specifically designed for filling IBCs and large containers. It combines automated filling with manual container handling, offering a high level of control, reliability, and flexibility. Each unit is custom-configured according to the product and customer requirements, ensuring maximum efficiency, safety, and easy plant integration.
Can the LSC IBC filling machine be integrated into an existing line?
Yes. AiCROV adapts the LSC semi-automatic machine to your current system, integrating it with conveyors, auxiliary stations, or already operational lines, ensuring quick implementation and minimizing downtime.
Does the LSC machine support different container sizes?
Yes. The LSC IBC filling machine is designed to fill IBCs, totes, and bulk containers with capacities ranging approximately from 800 to 1,500 liters. AiCROV can also adapt the machine to specific or customized formats according to customer requirements.
Is the LSC semi-automatic machine built or configured according to the customer’s product?
Yes. AiCROV configures each LSC IBC filling machine according to the product characteristics, whether liquid, viscous, or foaming, and also for ATEX environments when required. Thanks to the mobile dosing system, the filling arm follows the product level during filling, preventing bubble and foam formation and ensuring clean and precise filling.
Can the LSC semi-automatic machine be upgraded?
Yes. The LSC IBC filling machine can be optimized and expanded with new tools, additional functions, or automation upgrades, allowing the machine to evolve alongside your production growth.
What maintenance does the LSC semi-automatic filling machine require?
Maintenance is defined according to the product type, its properties, production rate, and operating environment. AiCROV offers customized programs that combine periodic inspections, parameter optimization, and technical support, ensuring stable and continuous machine performance.
