Filling machines and palletizers — compare every AiCROV model

Ten weigh filling machines and two palletizers side by side: containers, throughput and level of automation of each model.

Machine Series Automation Containers Throughput
LSG Plug & Fill Semi-automatic Jerrycans and bottles, 1–30 L 150 containers/h (25 L)
LSB Plug & Fill Semi-automatic Drums, 30–250 L 65 drums/h (220 L)
LSC Plug & Fill Semi-automatic IBCs (totes), 800–1,500 L / 210–400 gal 20 IBC/h (1,200 L)
SP1 Plug & Fill Semi-automatic Containers on a pallet, canisters to IBCs 80–130 canisters/h · 65 drums/h · 15 IBC/h
SP2 Compact Semi-automatic, with conveyors Containers on a pallet 65 drums/h · 15 IBC/h
SP25 Compact Motorised head; automatic with machine vision Containers on a pallet, 20–1,500 L / 5–400 gal 65 drums/h · 15 IBC/h
SP3 Advanced Automatic, Cartesian gantry Drums and IBCs on a pallet, 20–1,500 L / 5–400 gal 65 drums/h · 15 IBC/h
EL2-B Advanced Automatic, in line Drums, 60–250 L up to 130 drums/h
EL2-E Advanced Automatic, in line Jerrycans and bottles, up to 30 L up to 900 containers/h (25 L)
Robot Filler Advanced Fully automatic, robot with 3D vision Drums and IBCs on a pallet, 20–1,500 L / 5–400 gal up to 120 canisters/h · 65 drums/h · 20 IBC/h
RPE Palletizer Robot palletizer Jerrycans, canisters, bottles and pails 5–6 cycles/min
PBE Palletizer Drum palletizer Drums up to 300 kg up to 45 pallets/h with 4 drums
automatic drum filling

PBE — automatic drum palletizer for drums up to 300 kg, up to 45 pallets per hour

The PBE is AiCROV’s automatic palletizer for drum filling lines. It takes an empty pallet from a magazine, receives the...

palletizing pails

RPE — robot palletizer for jerrycans, canisters, bottles and pails, 5–6 cycles per minute

The RPE is AiCROV’s robotic palletizing cell for the end of a filling line, built on industrial robots from premium...

AiCROV SP25 filling machine with motorised nozzle positioning

SP25 — weigh filling machine with motorised nozzle positioning

This is the machine in the range where the operator stops moving the head by hand. Travel in X, in...

20 - 1500 L

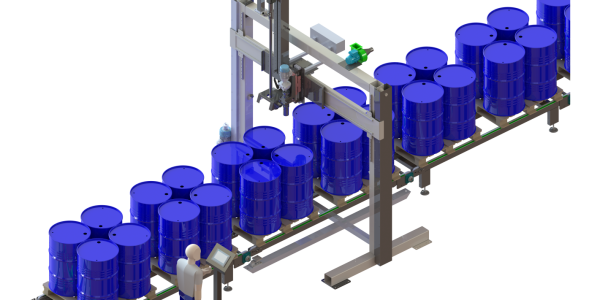

AiCROV SP3 automatic drum and IBC filling machine on a conveyor line

SP3 — automatic filling machine for drums and IBCs on a pallet

With the Robot Filler, this is the most automated machine we build. The operator does not intervene during the cycle...

20 - 1500 L

AiCROV Robot Filler robotic filling machine for drums and IBCs on pallet

Robot Filler — fully automatic robotic filling machine for drums and IBCs

Robotic filling of jerrycans, drums and IBCs on a pallet: 3D vision finds each container, then the robot uncaps, fills,...

20 - 1500 L

AiCROV EL2-B automatic in-line drum filling machine

EL2-B — in-line automatic drum filling machine

Automatic in-line filling of steel and plastic drums from 60 to 250 litres, by weight, with uncapping, capping and sealing...

60 - 250 L

AiCROV EL2-E automatic in-line filling machine for jerrycans and pails

EL2-E — in-line automatic filling machine for jerrycans and small containers

Automatic in-line weigh filling machine for liquid and viscous products in metal or plastic canisters, pails and jerrycans with a...

1 - 30 L

AiCROV SP2 semi-automatic filling machine with conveyor line

SP2 — semi-automatic filling line for containers on a pallet, with conveyors

Semi-automatic filling of drums and IBCs on a pallet, from 20 to 1,500 litres, by weight, on a preconfigured machine.

20 - 1500 L

AiCROV SP1 semi-automatic weigh filling machine for drums and IBCs on a pallet

SP1 — semi-automatic weigh filling machine for containers on a pallet

Semi-automatic weigh filling of jerrycans, drums and IBCs on a pallet: the operator positions the nozzle and the machine fills...

20 - 1500 L

AiCROV LSC semi-automatic IBC filling machine

LSC — semi-automatic weigh filling machine for IBCs

For plants that only fill IBCs (totes): quick to set up and configure, and available in an explosion proof version.

800 - 1500 L
